Hartmann HRS4-252-GS 20x9.0 ET25 Wheel for Audi and Volkswagen

$350.00
( 0 Reviews )
Send Tires to Achtuning for Mounting and Balancing
Add OEM Audi or VW Centercaps
Add Lug Bolts for Q-Series

Current stock: 0

Since 1978, Hartmann Wheels has focused on bringing the highest quality wheels to the US market. Hartmann wheels are produced in a modern, state-of-the-art German owned foundry. Hartmann utilizes a low pressure casting process which produces a high performance wheel equal in strength and finish quality to OEM Audi and VW wheels. The wheels are heat treated for increased strength and are tested to JWL, VIA, and TUV standards.

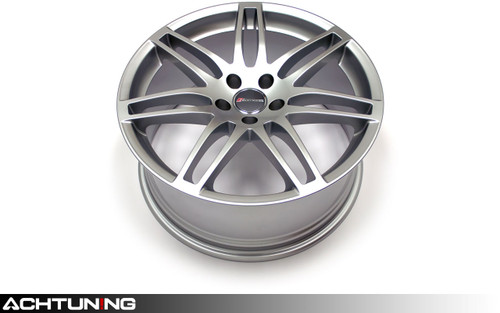

Hartmann HRS4-252-GS wheels were designed by Germany's finest engineers. The Hartmann HRS4-252-GS wheel is an OEM-inspired design featuring 7 split spokes which curve inwards to meet the centercap. The HRS4-252-GS wheels are finished with a gloss silver paint. The HRS4-252-GS is designed to accept OEM lug bolts, OEM centercaps, and OEM TPMS senders.


Hartmann carefully selects their wheel offsets "ET"* to provide a fitment which will clear the brake caliper and suspension components, widen the track for better handling and aesthetics, and not allow the tire to contact the fender or fender liner during cornering or suspension travel, even on lowered vehicles. Fitment is backed by a money back guarantee.
*ET: from German "Einpresstiefe" (translates into "Insertion Depth") referred to as "Offset" in English: A measurement in mm of the distance between the center line of the wheel and the mounting surface of the wheel which contacts the hub face.


HARTMANN HRS4-252-GS FEATURES:

  • Gloss Silver Finish
  • Guaranteed fitment
  • OE quality and strength
  • Uses OEM R13 ball seat lug bolts
  • Accepts OEM centercaps
  • TPMS compatible
  • Low pressure cast aluminum alloy
  • Heat treated for high strength
  • Tested to JWL, VIA, and TUV standards

HARTMANN HRS4-252-GS SPECIFICATIONS:

  • Diameter: 20"
  • Width: 9.0"
  • Offset: ET25
  • Bolt Pattern: 5x112
  • Centerbore: 66.56 mm
  • Centerbore Chamfer: 3 mm
  • Lug Type: 14x1.5 R13 Ball Seat
  • Centercap Audi: 4B0 601 170 A 7ZJ
  • Centercap VW: 3B7 601 171 XRW
  • Load Rating: 720 Kg (1,584 Lbs)
  • Weight: 12.07 Kg (26.6 Lbs) +/- .5 Kg

FITMENT GUIDE:
The Hartmann HRS4-252-GS wheel in 20x9.0" ET25 fits the following vehicles:

* Requires 14x1.5x30mm R13 bolts

** 255/30-20 recommended

*** 255/35-20 recommended


SKU:
HRS4-252-GS 2090255112
Shipping:
Calculated at Checkout
Wheels:
20 inch diameter
Color:
gloss silver
