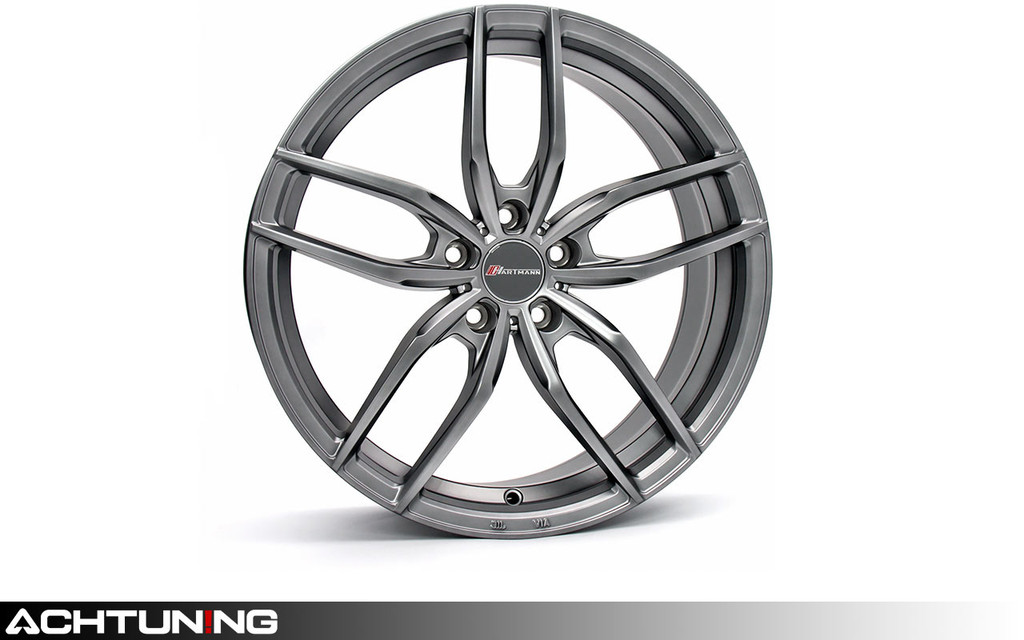

Hartmann FF-003-CG 20x9.5 ET29 Wheel for Audi and Volkswagen
Since 1978, Hartmann Wheels has focused on bringing the highest quality wheels to the US market. Hartmann wheels are designed by Germany's finest engineers and produced in a modern, state-of-the-art German owned foundry. The Hartmann HFF-003 utilizes a flow forming process which produces a lightweight, high performance wheel equal in strength and finish quality to OEM Audi wheels. The wheels are heat treated for increased strength and are tested to JWL, VIA, and TUV standards.
The Hartmann FF-003-CG wheel is a race-inspired design featuring 5 split spokes which run parallel to the face and then angle inwards toward the centercap. The FF-003-CG wheels are finished with a 3 stage carbon grey paint with a protective satin clearcoat and are designed to accept OEM lug bolts, OEM centercaps, and OEM TPMS senders.
Hartmann carefully selects their wheel offsets "ET"* to provide a fitment which will clear the brake caliper and suspension components, widen the track for better handling and aesthetics, and not allow the tire to contact the fender or fender liner during cornering or suspension travel, even on lowered vehicles. Fitment is backed by a money back guarantee. *ET: from German "Einpresstiefe" (translates into "Insertion Depth") referred to as "Offset" in English: A measurement in mm of the distance between the center line of the wheel and the mounting surface of the wheel which contacts the hub face.
HARTMANN FF-003-CG FEATURES:
Carbon Grey Finish
OE quality and strength
Uses OEM R13 ball seat lug bolts
Accepts OEM centercaps
Low pressure cast aluminum alloy center with flow formed barrel
Heat treated for high strength
Tested to JWL, VIA, and TUV standards
HARTMANN FF-003-CG SPECIFICATIONS:
Bolt Pattern: 5x112
Centerbore: 66.56 mm
Centerbore Chamfer: 3 mm
Lug Type: 14x1.5 R13 Ball Seat
Centercap Audi: 4B0 601 170 7ZJ
Centercap VW: 7D0 601 165 BXF
Load Rating: 690 Kg (1,521 Lbs)
Weight: 10.6 Kg (23.4 Lbs) +/- .5 Kg
FITMENT GUIDE: The Hartmann FF-003-CG wheel in 20x9.5" ET29 fits the following vehicles:
